Turbo Packages

Turbo Vacuum provides economical solutions for simple-to-purchase, small, complete turbo pump systems, ready to use. These packages include turbo pump, integrated controller, power supply, air cooling kit, and connection cables.
Features
• Economical solutions
• Reliable
• Ready to use & simple
• Dual voltage 90-240v
• Units Provided as Complete Package
TG60F

TG 60

Technical Specifications

Inlet Flange:
KF40, ISO 63, CF 63
Pumping Speed, L/S (N):
60
Pumping Speed, L/S (He)):
55
Pumping Speed, L/S (H):
22
Ultimate Pressure (mbar):
10-9
Startup Time (min):
1.5
Rotational Speed (rpm):
80,000
Orientation:
Any
Backing Pressure (mbar):
6
Outlet Flange:
NW 16
Weight (lb):
10
Controller:
TC66
Complete System Price:
$3,975.00

Ordering Information

TG60FKAB-OEM
TG60FRAB-OEM
TG60FCAB-OEM

TG240F

TG 240

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
240
Pumping Speed, L/S (He)):
160
Pumping Speed, L/S (H):
N/A
Ultimate Pressure (mbar):
10-10
Startup Time (min):
5
Rotational Speed (rpm):
48,000
Orientation:
Any
Backing Pressure (mbar):
6
Outlet Flange:
NW 25
Weight (lb):
18
Controller:
TC245
Complete System Price:
$7,600.00

Ordering Information

TG240FRAB-OEM
TG240FCAB-OEM

TV90I

TV90i

Technical Specifications

Inlet Flange:
ISO 63, CF 63
Pumping Speed, L/S (N):
90
Pumping Speed, L/S (He)):
90
Pumping Speed, L/S (H):
78
Ultimate Pressure (mbar):
10-10
Startup Time (min):
1.5
Rotational Speed (rpm):
72,000
Orientation:
Any
Backing Pressure (mbar):
14
Outlet Flange:
NW 16
Weight (lb):
7
Controller:
Integrated
Complete System Price:
$4,850.00

Ordering Information

TV90I-SYS-ISO
TV90I-SYS-CF

TV250I

TV250i

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
225
Pumping Speed, L/S (He)):
250
Pumping Speed, L/S (H):
210
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
72,000
Orientation:
Any
Backing Pressure (mbar):
14
Outlet Flange:
NW 16
Weight (lb):
13
Controller:
Integrated
Complete System Price:
$6,740.00

Ordering Information

TV250I-SYS-ISO
TV250I-SYS-CF

TV250I

TV 350i

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
290
Pumping Speed, L/S (He)):
360
Pumping Speed, L/S (H):
350
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
60,000
Orientation:
Any
Backing Pressure (mbar):
10
Outlet Flange:
NW 25
Weight (lb):
26
Controller:
Integrated
Complete System Price:
$7,320.00

Ordering Information

TV350I-SYS-ISO
TV350I-SYS-CF 6

TV250I

TV 450i

Technical Specifications

Inlet Flange:
ISO 160, CF 160
Pumping Speed, L/S (N):
430
Pumping Speed, L/S (He)):
440
Pumping Speed, L/S (H):
420
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
60,000
Orientation:
Any
Backing Pressure (mbar):
10
Outlet Flange:
NW 25
Weight (lb):
28
Controller:
Integrated
Complete System Price:
$7,980.00

Ordering Information

TV450I-SYS-ISO
TV450I-SYS-CF 8

nEXT85H

NEXT 85 H

Technical Specifications

Inlet Flange:
KF 40, ISO 63, CF 63
Pumping Speed, L/S (N):
84
Pumping Speed, L/S (He)):
79
Pumping Speed, L/S (H):
62
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
90,000
Orientation:
Vertical/Horizontal
Backing Pressure (mbar):
16
Outlet Flange:
NW 16
Weight (lb):
7
Controller:
Integrated
Complete System Price:
$4,980.00

Ordering Information

NEXT85H-SYS-KF40
NEXT85H-SYS-ISO
NEXT85H-SYS-CF

next2400

NEXT 240 T

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
240
Pumping Speed, L/S (He)):
230
Pumping Speed, L/S (H):
165
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
60,000
Orientation:
Vertical/Horizontal
Backing Pressure (mbar):
9.5
Outlet Flange:
NW 16
Weight (lb):
13
Controller:
Integrated
Complete System Price:
$7,840.00

Ordering Information

NEXT240D-SYS-ISO
NEXT240D-SYS-CF

next2400

NEXT 300 T

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
300
Pumping Speed, L/S (He)):
340
Pumping Speed, L/S (H):
280
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
60,000
Orientation:
Vertical/Horizontal
Backing Pressure (mbar):
20
Outlet Flange:
NW 25
Weight (lb):
14
Controller:
Integrated
Complete System Price:
$8,150.00

Ordering Information

NEXT300-SYS-ISO
NEXT300-SYS-CF

next400

NEXT 400 T

Technical Specifications

Inlet Flange:
ISO 160, CF 160
Pumping Speed, L/S (N):
400
Pumping Speed, L/S (He)):
390
Pumping Speed, L/S (H):
325
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
60,000
Orientation:
Vertical/Horizontal
Backing Pressure (mbar):
20
Outlet Flange:
NW 25
Weight (lb):
15
Controller:
Integrated
Complete System Price:
$8,960.00

Ordering Information

NEXT400-SYS-ISO
NEXT400-SYS-CF

HP10

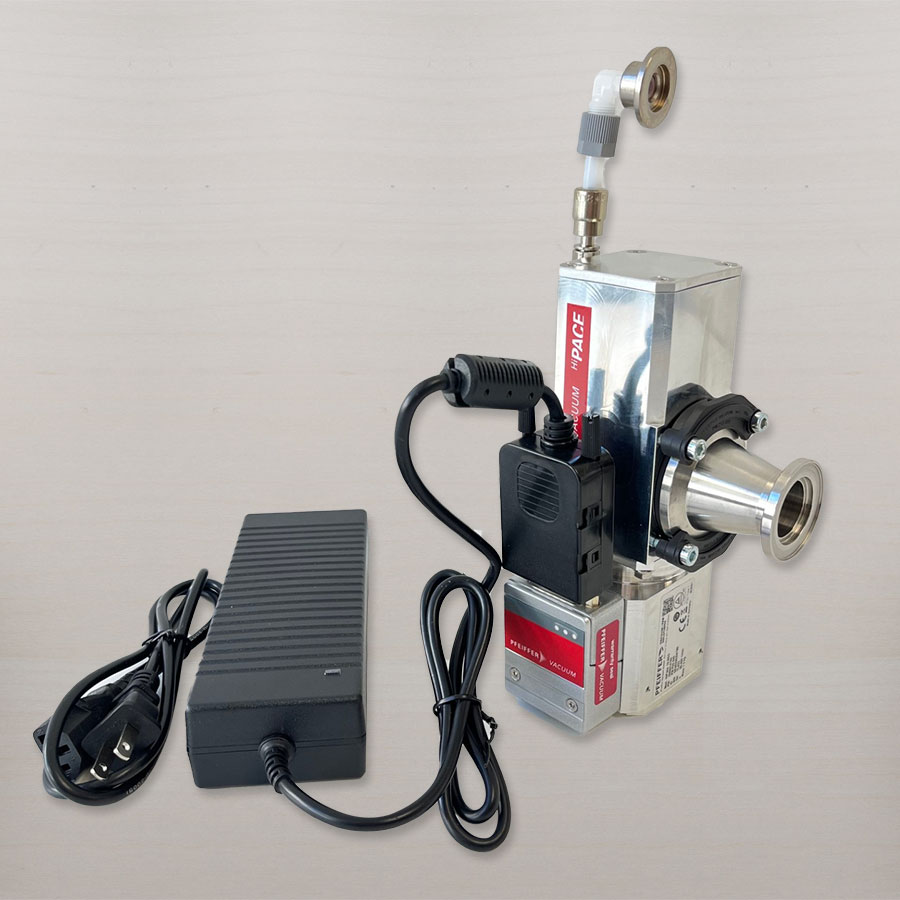

HP 10

Technical Specifications

Inlet Flange:
NW 25
Pumping Speed, L/S (N):
10
Pumping Speed, L/S (He)):
6
Pumping Speed, L/S (H):
3.7
Ultimate Pressure (mbar):
10-6
Startup Time (min):
1
Rotational Speed (rpm):
90,000
Orientation:
Any
Backing Pressure (mbar):
20
Outlet Flange:
NW 16
Weight (lb):
5
Controller:
TC110
Complete System Price:
$4,500.00

Ordering Information

HP10-SYS-NW25

Pfeiffer-hp80

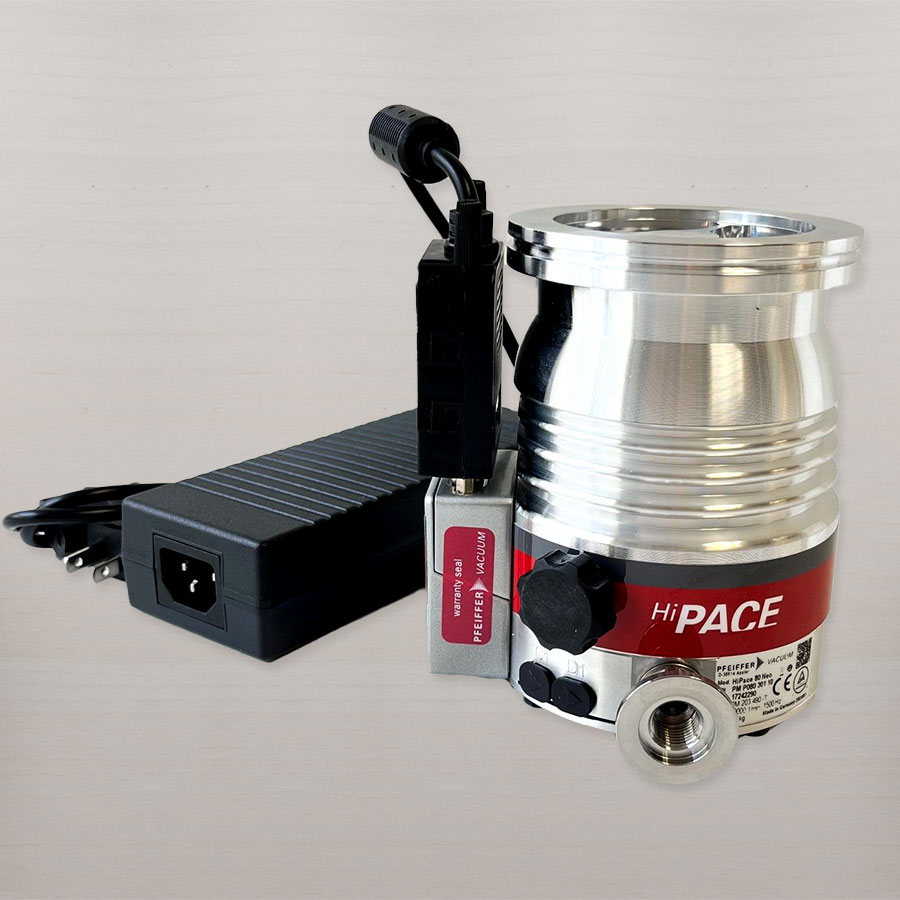

HP 80

Technical Specifications

Inlet Flange:
ISO 63, CF 63
Pumping Speed, L/S (N):
71
Pumping Speed, L/S (He)):
66
Pumping Speed, L/S (H):
55
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
90,000
Orientation:
Any
Backing Pressure (mbar):
2
Outlet Flange:
NW 16
Weight (lb):
6
Controller:
TC110
Complete System Price:
$6,562.00

Ordering Information

HP800BPS-ISO
HP800BPS-CF

Pfeiffer-hp300

HP 300

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
250
Pumping Speed, L/S (He)):
260
Pumping Speed, L/S (H):
220
Ultimate Pressure (mbar):
10-10
Startup Time (min):
5
Rotational Speed (rpm):
60,000
Orientation:
Any
Backing Pressure (mbar):
15
Outlet Flange:
NW 16
Weight (lb):
13
Controller:
TC110
Complete System Price:
$9,980.00

Ordering Information

HP300BPS-ISO
HP300BPS-CF
