Mass Spectrometry
Turbo Vacuum realizes that Mass Spectrometric measuring methods have become an indispensable diagnostic aid in numerous branches of process engineering, technology and product development, medicine, and basic scientific research. A vacuum must be generated for operating mass spectrometers. Conversely, development of vacuum technologies has increasingly required the utilization of small, high-performance mass spectrometers. Mass Spectrometers require a working pressure of 1 x 5-5 mbar. Since many processes operate at higher pressures, the mass spec cannot be solely selected based on analyzer, ion source and detector. A coordinated system consists of mass spec, vacuum pump, and measurement tool.
Applications
• Leak testing of serial production components
• Quantitative determination of composition and purity of process gases
• Complex analysis of catalytic reactions on the surface of solid bodies
• Investigation of biochemical substance transformations

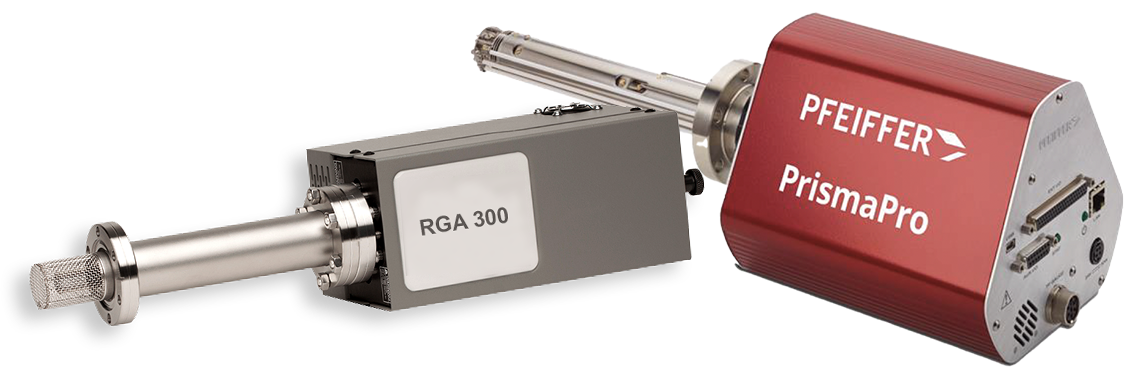

The Prisma Series for residual gas analysis, leak detections and process – monitoring in the high vacuum range.
Features
• Economical
• Easy System Integration
• Fast and Error-Free Data Transfer Via Fiber Optics
• User Friendly Software
• Selectable Partial Pressures
• High Up-Time Due To Dual Filmier Design
PRISMA 100
Technical Specifications
Mass Range (amu):
1 – 100
System Diameter / Length (mm):
6 / 100
Detection Limit, MIN (mbar):
1.10-12
Sensitifity For AR (a/mbar):
1.10-3
Dectector:
Faraday
Operating Pressure Max (mbar):
1.10-4
Contribution to Neighboring Mass (40/41) PPM:
< 10
Operating Temperature/Analyzer (OC Max):
150
Connecting Flange:
CF 40
Weight (lbs):
7
Price:
$9,792.00
Ordering Information
Part Number
PTM0S111110
Adaptor
DN40CF – F
RGA 100
Technical Specifications
Mass Range (amu):
1 – 100
ECU Dimension:
9.1″x4.1″x3.1″
Detection Limit, MIN (mbar):
5×10-11
Sensitifity For AR (a/mbar):
2.10-4
Dectector:
Faraday
Operating Pressure Max (mbar):
1×10-4
Resolution:
> 0.5 AMU @ 10% Peak
Operating Temperature/Analyzer (OC Max):
70
Connecting Flange:
CF 40
Weight (lbs):
6
Price:
$5,000.00
Ordering Information
Part Number
RGA100PM
Adaptor
DN40CF – F
PRISMA 200
Technical Specifications
Mass Range (amu):
1 – 200
System Diameter / Length (mm):
6 / 100
Detection Limit, MIN (mbar):
2.10-12
Sensitifity For AR (a/mbar):
6.10-4
Dectector:
Faraday
Operating Pressure Max (mbar):
1.10-4
Contribution to Neighboring Mass (40/41) PPM:
< 20
Operating Temperature/Analyzer (OC Max):
150
Connecting Flange:
CF 40
Weight (lbs):
7
Price:
$12,039.00
Ordering Information
Part Number
PTM0S211110
Adaptor
DN40CF – F
RGA 200
Technical Specifications
Mass Range (amu):
1 – 200
ECU Dimension:
9.1″x4.1″x3.1″
Detection Limit, MIN (mbar):
5×10-11
Sensitifity For AR (a/mbar):
2.10-4
Dectector:
Faraday
Operating Pressure Max (mbar):
1×10-4
Resolution:
> 0.5 AMU @ 10% Peak
Operating Temperature/Analyzer (OC Max):
70
Connecting Flange:
CF 40
Weight (lbs):
6
Price:
$6,000.00
Ordering Information
Part Number
RGA200PM
Adaptor
DN40CF – F
PRISMA 300
Technical Specifications
Mass Range (amu):
1 – 300
System Diameter / Length (mm):
6 / 100
Detection Limit, MIN (mbar):
4.10-12
Sensitifity For AR (a/mbar):
3.10-4
Dectector:
Faraday
Operating Pressure Max (mbar):
1.10-4
Contribution to Neighboring Mass (40/41) PPM:
< 50
Operating Temperature/Analyzer (OC Max):
150
Connecting Flange:
CF 40
Weight (lbs):
7
Price:
$15,595.00
Ordering Information
Part Number
PTM0S311111
Adaptor
DN40CF – F
RGA 300
Technical Specifications
Mass Range (amu):
1 – 300
ECU Dimension:
9.1″x4.1″x3.1″
Detection Limit, MIN (mbar):
5×10-11
Sensitifity For AR (a/mbar):
2.10-4
Dectector:
Faraday
Operating Pressure Max (mbar):
1×10-4
Resolution:
> 0.5 AMU @ 10% Peak
Operating Temperature/Analyzer (OC Max):
70
Connecting Flange:
CF 40
Weight (lbs):
6
Price:
$7,500.00
Ordering Information
Part Number
RGA300PM
Adaptor
DN40CF – F
The MS 100, MS 100E, MS 200E and OmniStar gas analysis system is designed for quantitative gas analysis which includes non-polar molecules, inert gases, etc. Complete mass spectrometry system for turnkey operations with software.
Features
• Analysis Software
• Low Detection threshold (<1 ppm)
• Temperature controlled gas line
• Software controlled valve
• Certain identification of unknown gases
• Measurement of up to 64 gas components
• Low memory effects
• Short response time
• Online process control
• Mass Ranges 1-100 amu, 1-200 amu, 1-300 amu
MS 100
Technical Specifications
Mass Range (amu):
1 – 100
System Diameter / Length (mm):
6 / 100
Detection Limit, MIN (mbar):
1.10-12
Sensitifity For AR (a/mbar):
1.10-3
Dectector:
N/A
Operating Pressure Max (mbar):
1.10-4
Contribution to Neighboring Mass (40/41) PPM:
< 10
Operating Temperature/Analyzer (OC Max):
N/A
Connecting Flange:
NW 25
Weight (lbs):
37
Price:
$16,980.00
Ordering Information
Part Number
V022313
Adaptor
N/A
MS 100E
Technical Specifications
Mass Range (amu):
1 – 100
ECU Dimension:
9.1″x4.1″x3.1″
Detection Limit, MIN (mbar):
5×10-11
Sensitifity For AR (a/mbar):
2.10-4
Dectector:
Faraday
Operating Pressure Max (mbar):
1×10-4
Resolution:
> 0.5 AMU @ 10% Peak
Operating Temperature/Analyzer (OC Max):
70
Connecting Flange:
CF 40
Weight (lbs):
37
Price:
$12,420.00
Ordering Information
Part Number
V032815
Adaptor
N/A
MS 200E
Technical Specifications
Mass Range (amu):
1 – 200
ECU Dimension:
9.1″x4.1″x3.1″
Detection Limit, MIN (mbar):
5×10-11
Sensitifity For AR (a/mbar):
2.10-4
Dectector:
Faraday
Operating Pressure Max (mbar):
1×10-4
Resolution:
> 0.5 AMU @ 10% Peak
Operating Temperature/Analyzer (OC Max):
70
Connecting Flange:
CF 40
Weight (lbs):
37
Price:
$13,420.00
Ordering Information
Part Number
V033815
Adaptor
N/A
OMNISTAR 320
Technical Specifications
Mass Range (amu):
1 – 200
System Diameter / Length (mm):
6 / 100
Detection Limit, MIN (mbar):
1.10-12
Sensitifity For AR (a/mbar):
1.10-3
Dectector:
Faraday
Operating Pressure Max (mbar):
1.10-4
Contribution to Neighboring Mass (40/41) PPM:
< 10
Operating Temperature/Analyzer (OC Max):
N/A
Connecting Flange:
55 Capillary
Weight (lbs):
100
Price:
$63,800.00
Ordering Information
Part Number
PTM80117121
Adaptor
N/A
