Pfeiffer Turbo Pumps

For more than 100 years, Pfeiffer Vacuum has been one of the leading companies of high and ultra-high vacuum technology. Pfeiffer’s goal is to provide innovative products featuring high reliability and optimum physical properties. The most important instrument for creating high vacuum is the turbo molecular pump, which was devised at the Pfeiffer factory in 1957 by W. Becker. The new HiPace line of turbo pumps are equipped with integrated controllers for modular design and maximum flexibility to assist in making installation easy. The HiPace line ranges from 10-2000 L/s.
Features
• Pump and drive form a single unit
• All components connect on the plug-and-play principle
• Minimal space requirements for entire system
• Integrated serial interface provides additional versatility
• Simple and economical system solutions
• On site bearing change
• Installation in any position
• Corrosive versions available

OmniControl Universal Turbo Pump Controller

With the OmniControl, you only require one control device for your complete vacuum
system. The OmniControl controls products that support Pfeiffer protocol, HiPace,
HiScroll, HiLobe, MVP, and DigiLine/ActiveLine gauges. A 3.5” touch color display
allows control of your turbo pump parameters for speed, power consumption, etc. and
gauge monitoring. Different screen configurations can be selected based upon a end
users preferences. Rack mount or hand held 001 version for turbos with integrated
controller/power supplies.

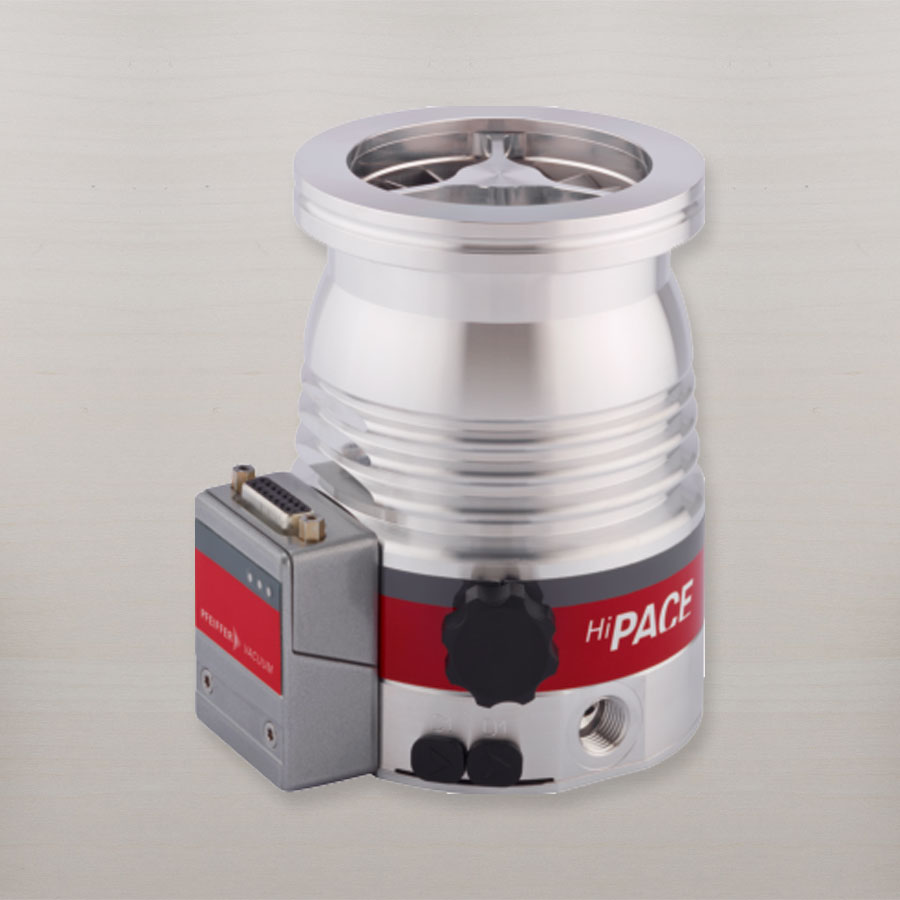

hipace-80

HP80 NEO

Technical Specifications

Inlet Flange:
ISO 63, CF 63
Pumping Speed, L/S (N):
66
Pumping Speed, L/S (He):
58
Pumping Speed, L/S (H):
48
Compression Ratio (N):
> 10/11
Compression Ratio (He):
4 x 10/6
Compression Ratio (H):
1 x 10/5
Ultimate Pressure (mbar):
10-10
Startup Time (min):
1.5
Rotational Speed (rpm):
90,000
Orientation:
Any
Backing Pressure (mbar):
20
Outlet Flange:
NW 16
Weight (lb):
6
Price:
$8,190.00
Controller:
OmniControl 200
Controller Price:
$2,240.00

Ordering Information

Turbo Pump
ISO PMP08030110
CF PMP08031110

DCU Controller
PED50100

Pfeiffer-HP300

HP300

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
250
Pumping Speed, L/S (He):
260
Pumping Speed, L/S (H):
220
Compression Ratio (N):
> 10/11
Compression Ratio (He):
> 10/8
Compression Ratio (H):
9 x 10/6
Ultimate Pressure (mbar):
10-10
Startup Time (min):
5
Rotational Speed (rpm):
–
Orientation:
Any
Backing Pressure (mbar):
15
Outlet Flange:
NW 16
Weight (lb):
13
Price:
$12,145.00
Controller:
OmniControl 300
Controller Price:
$2,340.00

Ordering Information

Turbo Pump
ISO PMP03900
CF PMP03901

DCU Controller
PED601000

Pfeiffer-HP300

HP300 H

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
255
Pumping Speed, L/S (He):
255
Pumping Speed, L/S (H):
220
Compression Ratio (N):
10/13
Compression Ratio (He):
10/9
Compression Ratio (H):
10/7
Ultimate Pressure (mbar):
10-11
Startup Time (min):
3.5
Rotational Speed (rpm):
60,000
Orientation:
Any
Backing Pressure (mbar):
20
Outlet Flange:
NW 25
Weight (lb):
14
Price:
$12,355.00
Controller:
OmniControl 300
Controller Price:
$2,340.00

Ordering Information

Turbo Pump
ISO PMP05400
CF PMP05401

DCU Controller
PED601000

HP-350

HP350

Technical Specifications

Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
300
Pumping Speed, L/S (He):
350
Pumping Speed, L/S (H):
300
Compression Ratio (N):
10/11
Compression Ratio (He):
10/8
Compression Ratio (H):
10/7
Ultimate Pressure (mbar):
10-10
Startup Time (min):
4
Rotational Speed (rpm):
66,000
Orientation:
Any
Backing Pressure (mbar):
10
Outlet Flange:
NW 16
Weight (lb):
16
Price:
$13,300.00
Controller:
OmniControl 300
Controller Price:
$2,340.00

Ordering Information

Turbo Pump
ISO PMP07040120
CF PMP07041120

DCU Controller
PED601000

HP-450

HP450

Technical Specifications

Inlet Flange:
ISO 160, CF 160
Pumping Speed, L/S (N):
350
Pumping Speed, L/S (He):
380
Pumping Speed, L/S (H):
330
Compression Ratio (N):
10/11
Compression Ratio (He):
10/8
Compression Ratio (H):
10/6
Ultimate Pressure (mbar):
10-10
Startup Time (min):
4
Rotational Speed (rpm):
66,000
Orientation:
Any
Backing Pressure (mbar):
10
Outlet Flange:
NW 25
Weight (lb):
16
Price:
$13,900.00
Controller:
OmniControl 300
Controller Price:
$2,340.00

Ordering Information

Turbo Pump
ISO PMP07050120
CF PMP07051120

DCU Controller
PED601000

Pfeiffer-HP700

HP700

Technical Specifications

Inlet Flange:
ISO 160, CF 160
Pumping Speed, L/S (N):
630
Pumping Speed, L/S (He):
720
Pumping Speed, L/S (H):
580
Compression Ratio (N):
> 10/11
Compression Ratio (He):
> 10/8
Compression Ratio (H):
4 x 10/6
Ultimate Pressure (mbar):
10-10
Startup Time (min):
2
Rotational Speed (rpm):
–
Orientation:
Any
Backing Pressure (mbar):
20
Outlet Flange:
NW 25
Weight (lb):
24
Price:
$23,847.00
Controller:
OmniControl 400
Controller Price:
$2,650.00

Ordering Information

Turbo Pump
ISO PMP03933
CF PMP03934

DCU Controller
PED701000

Pfeiffer-hp1200

HP1200

Technical Specifications

Inlet Flange:
ISO 200, CF 200
Pumping Speed, L/S (N):
1250
Pumping Speed, L/S (He):
1300
Pumping Speed, L/S (H):
1100
Compression Ratio (N):
> 10/8
Compression Ratio (He):
2 x 10/5
Compression Ratio (H):
6 x 10/3
Ultimate Pressure (mbar):
10-10
Startup Time (min):
5
Rotational Speed (rpm):
37,800
Orientation:
–
Backing Pressure (mbar):
2
Outlet Flange:
NW 40
Weight (lb):
70
Price:
$32,850.00
Controller:
Integrated

Ordering Information

Turbo Pump
ISO PMP03910
CF PMP03911

Pfeiffer-HP1500

HP1500

Technical Specifications

Inlet Flange:
ISO 250, CF 250
Pumping Speed, L/S (N):
1450
Pumping Speed, L/S (He):
1350
Pumping Speed, L/S (H):
1150
Compression Ratio (N):
1 x 10/8
Compression Ratio (He):
2 x 10/5
Compression Ratio (H):
6 x 10/3
Ultimate Pressure (mbar):
10-7
Startup Time (min):
2.5
Rotational Speed (rpm):
37,800
Orientation:
–
Backing Pressure (mbar):
2
Outlet Flange:
NW 40
Weight (lb):
64
Price:
$38,497.00
Controller:
Integrated

Ordering Information

Turbo Pump
ISO PMP04061
CF PMP04062

Pfeiffer-HP1800

HP1800

Technical Specifications

Inlet Flange:
ISO 200, CF 200
Pumping Speed, L/S (N):
1450
Pumping Speed, L/S (He):
1650
Pumping Speed, L/S (H):
1700
Compression Ratio (N):
1 x 10/8
Compression Ratio (He):
3 x 10/5
Compression Ratio (H):
2 x 10/4
Ultimate Pressure (mbar):
10-7
Startup Time (min):
4
Rotational Speed (rpm):
31,500
Orientation:
–
Backing Pressure (mbar):
1.8
Outlet Flange:
NW 40
Weight (lb):
72
Price:
$40,078.00
Controller:
Integrated

Ordering Information

Turbo Pump
ISO PMP04070
CF PMP04071

Pfeiffer-hp2300

HP2300

Technical Specifications

Inlet Flange:
ISO 250, CF 250
Pumping Speed, L/S (N):
1900
Pumping Speed, L/S (He):
2050
Pumping Speed, L/S (H):
1850
Compression Ratio (N):
> 10/8
Compression Ratio (He):
3 x 10/5
Compression Ratio (H):
2 x 10/4
Ultimate Pressure (mbar):
10-10
Startup Time (min):
8
Rotational Speed (rpm):
31,500
Orientation:
–
Backing Pressure (mbar):
1.8
Outlet Flange:
NW 40
Weight (lb):
90
Price:
$53,291.00
Controller:
Integrated

Ordering Information

Turbo Pump
ISO PMP03921
CF PMP03922
