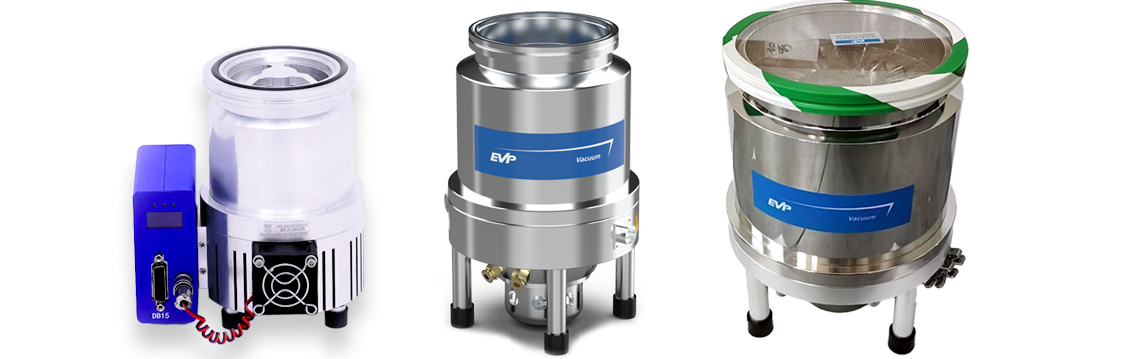

EVP Technology Turbo Pumps
The EVP corporation is committed to the production of high-quality turbo molecular
pumps providing first-class vacuum equipment solutions for global customers.
Inspiration for the creation of EVP’s brand comes from the mission “deliver Eastern Vacuum
Products to all over the world”, emphasizing the confidence and vitality from the East.
EMP series turbo molecular pumps can obtain clean and ultra-high vacuum without cold
traps or oil baffles. The EMP series of turbo pumps utilize grease lubricated bearings.
The simple design provides efficient long-term operation.
Features
• TwisTorr FS technology
• I/O paralle interface
• Economical
• Simple design & high reliability
• Units provide as complete set – Turbo, Controller, Cables, Cooling, INlet Screen
B-Series Controller – Power Supply
The B-Series turbo molecular pump digital controller is a high-speed programmable
device. Its functional mode is persistent and stable, and the parameters settings are
accurate. The power supply part of the controller has protection functions to prevent it
from strong over currents, inaccurate power operation, abrupt power deceleration
speed, over-heat of the power plug, over-heat of the turbo molecular pump, and the
function of tracing frequency from the upper to lower bearing.
The controller power supply is installed internally with a high efficiency output matching transformer which has the extra overload capacity and a very low exothermic function. It is extremely suitable for a long-time persistent operation. Functionality of external controlled interface is convenient to constitute multimode operations.<‘h5>
FB80
Technical Specifications
Inlet Flange:
ISO 63, CF 63
Pumping Speed, L/S (N):
80
Ultimate Pressure (mbar):
10-6
Startup Time (min):
2
Rotational Speed (rpm):
60,000
Orientation:
Any
Backing Pressure (mbar):
6
Outlet Flange:
NW 16
Weight (lb):
7
Controller:
Integrated
Price:
$6,000.00
Ordering Information
Turbo Pump System ISO
Air Cooling:
FB80ISOA
EMP300
Technical Specifications
Inlet Flange:
ISO 100, CF 100
Pumping Speed, L/S (N):
300
Ultimate Pressure (mbar):
10-7
Startup Time (min):
<4
Rotational Speed (rpm):
33,000
Orientation:
Any
Backing Pressure (mbar):
1
Outlet Flange:
NW 25
Weight (lb):
24
Controller:
B-Series
Price:
$6,800.00
Ordering Information
Turbo Pump System ISO
Air Cooling:
EMP300ISOA
Water Cooling:
EMP300ISOW
EMP650
Technical Specifications
Inlet Flange:
ISO 160, CF 160
Pumping Speed, L/S (N):
650
Ultimate Pressure (mbar):
10-7
Startup Time (min):
<5
Rotational Speed (rpm):
24,000
Orientation:
Any
Backing Pressure (mbar):
1
Outlet Flange:
NW 40
Weight (lb):
48
Controller:
B-Series
Price:
$7,900.00
Ordering Information
Turbo Pump System ISO
Air Cooling:
EMP650ISOA
Water Cooling:
EMP650ISOW
EMP1300
Technical Specifications
Inlet Flange:
ISO 200, CF 200
Pumping Speed, L/S (N):
1,300
Ultimate Pressure (mbar):
10-8
Startup Time (min):
<5
Rotational Speed (rpm):
24,000
Orientation:
Any
Backing Pressure (mbar):
1
Outlet Flange:
NW 40
Weight (lb):
59
Controller:
B-Series
Price:
$8,900.00
Ordering Information
Turbo Pump System ISO
Air Cooling:
EMP1300ISOA
Water Cooling:
EMP1300ISOW
EMP2000
Technical Specifications
Inlet Flange:
ISO 250, CF 250
Pumping Speed, L/S (N):
2,000
Ultimate Pressure (mbar):
10-8
Startup Time (min):
<5
Rotational Speed (rpm):
24,000
Orientation:
Any
Backing Pressure (mbar):
0.1
Outlet Flange:
NW 50
Weight (lb):
66
Controller:
B-Series
Price:
$10,800.00
Ordering Information
Turbo Pump System ISO
Air Cooling:
EMP2000ISOA
Water Cooling:
EMP2000ISOW
Turbo Pump System CF
Air Cooling:
EMP2000CFA
Water Cooling:
EMP2000CFW
