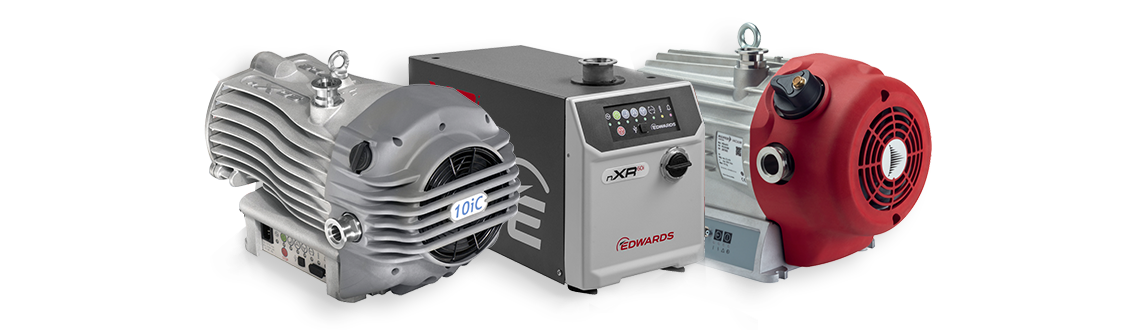

Dry Oil-Free Pumps
Within the last decade dry vacuum pumps have become the industry normal. The new generation of dry pumps are considerably longer lasting, provide better performance, reduce service costs, and smaller in size for pumping volume. Most units incorporate a integrated controller design for remote operation and pump status. Dry pumps ensure high vacuum systems remain contaminated free. Combining a turbo molecular pump with a dry backing pump effectively provides ideal conditions and the quickest evacuations. The various size selection of dry pumps below are of the highest quality and design available today.
Features
• No contamination back-streaming
• Longer service intervals
• Quiet and less vibration
• Ability to remove condensation quickly
• Ability to remove corrosive vapor gases
• Dual voltage operations for global use
mXDS3
Technical Specifications
Inlet Flange:
NW 16
Pumping Speed (CFM):
2.06
Ultimate Pressure (TORR):
0.075
Voltage:
115/200/230
Weight (LBS):
17
Ordering Information
Part Number
A74401903
nXDS6I / C
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
4
Ultimate Pressure (TORR):
0.015
Voltage:
100-240
Weight (LBS):
58
Ordering Information
Part Number
A73501983
nXDS10I / C
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
7.5
Ultimate Pressure (TORR):
0.005
Voltage:
100-240
Weight (LBS):
57
Ordering Information
Part Number
A73601983
nXDS15I / C
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
10.1
Ultimate Pressure (TORR):
0.005
Voltage:
100-240
Weight (LBS):
56
Ordering Information
Part Number
A73701983
XDS35I / C
Technical Specifications
Inlet Flange:
NW 40
Pumping Speed (CFM):
25
Ultimate Pressure (TORR):
7 x 10-3
Voltage:
100-240
Weight (LBS):
105
Ordering Information
Part Number
A72401983
NXR 30i
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
18
Ultimate Pressure (TORR):
10-2
Voltage:
100-240V
Weight (LBS):
60
Ordering Information
Part Number
NXR30i-IPH
NXR 40i
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
23
Ultimate Pressure (TORR):
10-2
Voltage:
100-240V
Weight (LBS):
60
Ordering Information
Part Number
NXR40i-IPH
NXR 60i
Technical Specifications
Inlet Flange:
NW 40
Pumping Speed (CFM):
35
Ultimate Pressure (TORR):
10-2
Voltage:
100-240V
Weight (LBS):
64
Ordering Information
Part Number
NXR60i-IPH
NXR 90i
Technical Specifications
Inlet Flange:
NW 40
Pumping Speed (CFM):
52
Ultimate Pressure (TORR):
10-2
Voltage:
100-240V
Weight (LBS):
64
Ordering Information
Part Number
NXR90i-IPH
ECODRY 25
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
14.7
Ultimate Pressure (TORR):
10-2
Voltage:
100-120V / 200-240V
Weight (LBS):
61
Ordering Information
Part Number
ECODRY25
ECODRY 35
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
20.5
Ultimate Pressure (TORR):
10-2
Voltage:
100-120V / 200-240V
Weight (LBS):
64
Ordering Information
Part Number
ECODRY35
ECODRY 40
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
23
Ultimate Pressure (TORR):
10-2
Voltage:
220-240V
Weight (LBS):
94
Ordering Information
Part Number
ECODRY40
ECODRY 65
Technical Specifications
Inlet Flange:
NW 40
Pumping Speed (CFM):
32
Ultimate Pressure (TORR):
10-2
Voltage:
220-240V
Weight (LBS):
94
Ordering Information
Part Number
ECODRY65
EVP75
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
2.5
Ultimate Pressure (TORR):
10-2
Voltage:
100/115 – 230V
Weight (LBS):
33
Ordering Information
Part Number
EVP75
EVP150 PB
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
5.2
Ultimate Pressure (TORR):
10-3
Voltage:
100/115 – 230V
Weight (LBS):
55
Ordering Information
Part Number
EVP150 PB-1PH
EVP200 PB
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
6.3
Ultimate Pressure (TORR):
10-3
Voltage:
100/115 – 230V
Weight (LBS):
62
Ordering Information
Part Number
EVP200 PB-1PH
EVP500 PB
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
10.5
Ultimate Pressure (TORR):
10-2
Voltage:
110/230V
Weight (LBS):
62
Ordering Information
Part Number
EVP500 PB-1PH
EVP800 PB
Technical Specifications
Inlet Flange:
NW 40
Pumping Speed (CFM):
22
Ultimate Pressure (TORR):
10-2
Voltage:
100/ 230V
Weight (LBS):
123
Ordering Information
Part Number
EVP800 PB-1PH
HiScroll 6
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
3.5
Ultimate Pressure (TORR):
10-2
Voltage:
100-240V
Weight (LBS):
42
Ordering Information
Part Number
HiS6-1PH
HiScroll 12
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
7.1
Ultimate Pressure (TORR):
10-2
Voltage:
100-240V
Weight (LBS):
53
Ordering Information
Part Number
HiS12-1PH
HiScroll 18
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
10.7
Ultimate Pressure (TORR):
10-2
Voltage:
100-240V
Weight (LBS):
53
Ordering Information
Part Number
HiS18-1PH
ACP15
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
8.2
Ultimate Pressure (TORR):
10-2
Voltage:
115V
Weight (LBS):
47
Ordering Information
Part Number
V5SAT
ACP28
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
16
Ultimate Pressure (TORR):
10-1
Voltage:
115V
Weight (LBS):
66
Ordering Information
Part Number
V6SAT
ACP40
Technical Specifications
Inlet Flange:
NW 40
Pumping Speed (CFM):
23
Ultimate Pressure (TORR):
10-2
Voltage:
115V
Weight (LBS):
71
Ordering Information
Part Number
V8SAT
SV7PLUS
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
6.1
Ultimate Pressure (TORR):
0.02
Voltage:
100-240V
Weight (LBS):
60
Ordering Information
Part Number
141007V10
SV10PLUS
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
10.6
Ultimate Pressure (TORR):
0.009
Voltage:
100-240V
Weight (LBS):
60
Ordering Information
Part Number
141010V10
SV15PLUS
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
14.5
Ultimate Pressure (TORR):
0.009
Voltage:
100-240V
Weight (LBS):
60
Ordering Information
Part Number
141015V10
SV18PLUS
Technical Specifications
Inlet Flange:
NW 25
Pumping Speed (CFM):
20
Ultimate Pressure (TORR):
0.03
Voltage:
100-240V
Weight (LBS):
60
Ordering Information
Part Number
141018V10
N952-1PH
Technical Specifications
Inlet Flange:
NW 16
Pumping Speed (CFM):
1.2
Ultimate Pressure (TORR):
1
Voltage:
90-240V
Weight (LBS):
10.6
Ordering Information
Part Number
N952-1PH
